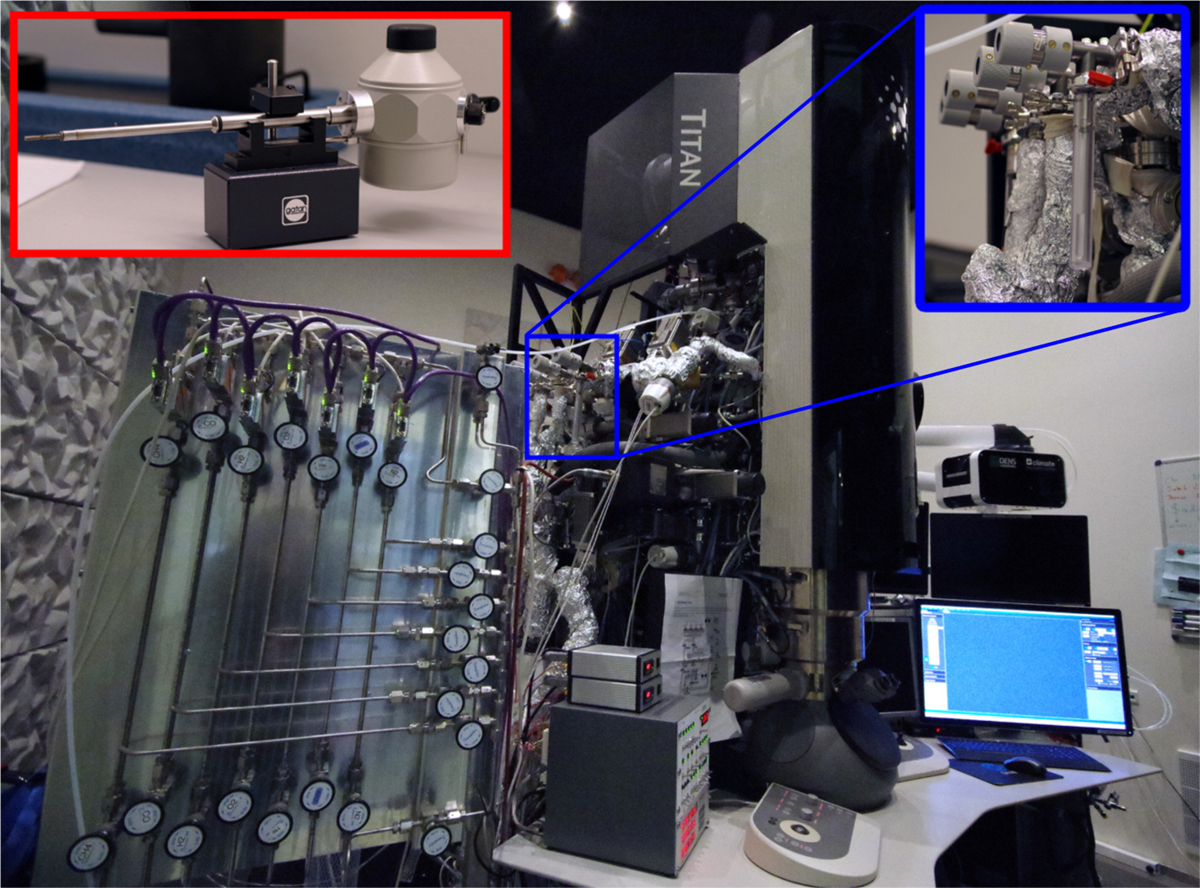

Figure 2: (a) FEI TITAN E-Cell 80-300 ST Environmental TEM, equipped with gas cell and gas mixing system. (Right inset) Glass vial with an organic precursor attached to one of the gas lines. (Left inset) Cryo Gatan TEM sample holder

As part of the imaging of nanoscale phenomena, exploring the fundamentals of electron matter interactions to turn radiation damage into an exciting opportunity for nanotechnology is discussed here by Postdoctoral Researcher, Anna Elsukova from the Technical University of Denmark

Imaging nanoscale phenomena in transmission electron microscopy requires the irradiation of our target sample with high-energy (60-300 keV) electrons. The interaction between these electrons and the atoms within the sample provide the signals we use to gain physical knowledge. However, they also inflict damage on the specimen, limiting acquisition and complicating the interpretation of structural and chemical data. Microscopists targeting inorganic/hard materials can generally ignore these complications. In other cases, for example, when studying catalytic reactions or soft matter, a great deal of caution is required.

At the Technical University of Denmark’s Center for Electron Nanoscopy (DTU Cen), we pay special attention to electron matter interactions and focus our efforts towards their deep scientific understanding in view of turning them into a useful tool for a variety of applications in nanotechnology. No other project demonstrates it better than Organic Ice Lithography, where we exploit electron matter interactions to trigger the nanoscale transformation of a frozen layer of volatile organic molecules into a solid product.

Organic Ice Resist Lithography (OIRL) is a new approach to electron beam based nanofabrication, developed at DTU Danchip/Cen through the PhD work of William Tiddi, supervised by Assistant Professor Anpan Han and Associate Professor Marco Beleggia [1][2]. The goal of electron beam lithography (EBL) (Figure 1(a)) is to create a desired pattern in a sacrificial material called resist.  The portion of the resist that is irradiated by an electron beam undergoes chemical changes, driven by two competing processes: chain scission and crosslinking (Figure 1(b)). Chain scission is the fragmentation of molecules into smaller units while crosslinking involves molecular units joining together. After exposure, the resist is immersed in a suitable chemical called developer. Chain scission reduces resist solubility; crosslinking does the opposite. Depending on which process dominated during the exposure, either the exposed or the unexposed areas will be dissolved by the developer (Figure 1(a)).

nanotechnology
Figure 1: (a) The basic steps of the electron beam lithography process. (b) Schematic representation of chain scission and crosslinking – two parallel chemical processes induced by electron beam irradiation. (c) Basic steps of the organic ice resist lithography process.

In OIRL, the organic ice resist material is condensed from vapour directly on a substrate held at cryogenic temperature (Figure 1(c)). With all the molecules we have tried so far (1-pentanol, n-nonane, anisole), the exposure process is dominated by crosslinking of the molecules. However, it is not the change of solubility that matters here, but the increase in the critical sublimation temperature of the exposed areas. Therefore, the unexposed areas are removed simply by heating the substrate to room temperature. This approach offers several advantages over existing EBL methods. Firstly, all process steps take place in a single instrument; repeating multiple cycles of condensation-exposure-heating steps enables the effective and precise fabrication of 3D layered structures. Secondly, it is easy to deposit the resist uniformly on any surface – porous, grooved or curved.

Finally, no chemicals are involved other than the resist precursor; this reduces the residual contamination and chemical pollution of a sample. Our first publication in 2017 [1] showed OIRL in action and demonstrated that simple organic molecules such as 1-pentanol, nonane and anisole can be used as resist materials. The next step was to establish and explore the link between resolution performance of OIRL and the chosen precursor, in particular, its initial molecular weight and the beam exposure parameters.

This is where transmission electron microscopy came in. The optics offered by TEM allows minimising the instrumental limitations imposed on patterned feature size. This strategy was implemented by scientists from Brookhaven National Laboratory who used an aberration-corrected TEM in the scanning mode to pattern sub-4 nm features on EBL resists [3]. In that case, the TEM was only used for e-beam exposure step.

Our task was more complicated since all process steps had to be carried out in a single instrument. Luckily, at DTU Cen we have an Environmental TEM (ETEM) (Figure 2). The sample in the ETEM is isolated from the column by two pressure-limiting apertures [4]. The apertures together with differential pumping lines attached between them which allows imaging the sample under elevated pressures.

ETEM is also equipped with gas mixing manifold system, which delivers a stable pressure stream of the desired gas into the microscope column. To turn the ETEM into an ice lithography instrument, we filled the glass vial with an organic precursor and attached it to one of the gas lines (Figure 2, right inset). The vapour condensed on a substrate mounted on a cryo-transfer Gatan sample holder cooled down to liquid nitrogen temperature (Figure 2, left inset).

After a long process of optimising ice deposition and exposure parameters, we successfully patterned features on n-nonane organic ice (Figure 3 (a)), including 10-nm parallel lines (Figure 3 (b)). Currently, we are focusing our effort on exploring other OIR materials and, most importantly, on understanding why and how OIRL works.

nanotechnology
Figure 3: (a) 150×150 nm2 square area and (b) parallel lines patterned on n-nonane (inset) organic ice in ETEM

In our upcoming publication [5], we will present our recent results on patterning linear hydrocarbon OIRs and discuss how the initial molecular weight of the precursor affects the exposure process and defines the feature size of the resulting structures.

We believe that OIRL has a bright future and can bring many benefits to applications that require fabrication of 3D structures, the patterning of complex surfaces and biocompatibility. We are also certain that it will shed light on many yet unanswered questions concerning the interaction of organic matter with the electron beam.
